Specification :
Processor: Hi3518E
Image Sensor: 1/3" Micron OV9712 CMOS Progressive Scan
Wireless Protocols: 802.11b/g/n
Infrared: 3 Array Leds
IR Range: 15m
Min. Illumination: Colour 0.1 Lux
B/W: 0.01 Lux
Day& Night: Dual IR-cut filter auto switch.
Lens
Lens: The default 3.6mm Lens
Max.Resolution: 1280*720P
IR and Remote View
IR Cut Night Vision , Support Android and iPhone for Remote View By "EseeCloud" APP.
Network
Alarm Trigger: Motion Detection
Alarm Way: Email Alarm
Protocols: P2P/ DHCP/ DDNS/ PPPoE/ E-Mail/ FTP etc.
Wireless Protocol: WIFI 802.11b/g/n 150Mbps
Interface
NET: 1 x RJ45 10M / 100M ethernet interface
Power: 1 x Ø5.5 RCA interface
Video Output: 1 x VGA, 1 x HDMI
Network Protocol: UPnP/ SMTP/ PPPoE/ DHCP, etc…
Net Interface: RJ-45 2 x WIFI antenna interface
USB Interface: 1 x USB2.0 Port
Hard Disk: 1 x SATA Port (Max 1 x 3T)
General
Anti-thunder Level: Standard IEC61000-4-5
Operating Conditions: -30℃ to 50℃
Humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%
Power Consumption: ≤ 6W
Waterproof: IP66
Housing Material: Metal
Weight: 0.5kg
System
Model: W4W4S
Main Processor: Professional Industrial Processor
Operating System: Embedded LINUX
Preview: 1/4
Control Device: USB Mouse
Video & RecordVideo Compression: H.264
Video Input: 4CH x 720P
Video Output: VGA / HDMI
1024x768, 1280x1024, 1366x768
Video Mode: Manual, Time, Motion, Alarm
Playback Mode: Real time, Routine, Event
Playback: 4CH x 720P
Storage & Backup
Space Occupation: 1080P: 20-25G/day/ch
Video Saved: 3.5 Inch HDD
OtherOperating Conditions: -10℃ to 55℃
Humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 10% 3A
Power Consumption: ≤ 5W
Size: 257mmx210mmx45mm
Weight: ≤ 1kg (Without HDD)

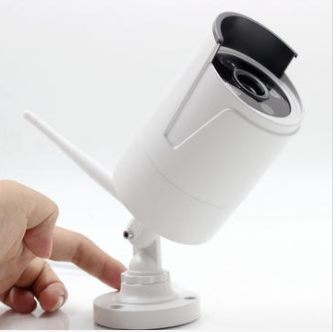

Wireless 720P 4CH 10inch LCD NVR IP CCTV Security Camera System
-Support multi-device real-time view.
-Day and night automatically switch.
-Not flicker, anti-jamming, no cardton.
-HD screen with the host can be rotated, flat view, with 50DB super antenna.
-The camera uses high-quality chip, the screen is not strobe, strong anti-interference.
-This product is effective against all kinds of interference, the screen is not stable stability, common cameras are often subject to interference caused by abnormal screen.
-Mobile monitoring, video control, as long as the camera online, anywhere can be remotely monitored.
-Camera and video recorder comes with wireless, automatic connection, barrier-free environment transmission distance of up to 100 meters, a wall can be transmitted 30-50 meter.
-Durable IP67 Weatherproof Camera, which means they are totally protected against dust while also protected against low pressure water jets from all directions.
