3KW 500VDC Pure Sine Wave Hybrid Inverter
Product Main Features
- 3KVA 3000W 24V Pure Sine Wave Inverer +40A-MPPT Solar Charger + 25A Battery Charger
- Max Battery DC Volt 33V
- Built-in EQUALIZATION Charge Max 31.5V
- Fuse Protection (Against DC Reverse Polarity)
- PWM-50A/MPPT-40A Solar + UTILITY 25A Charge
- Works With 220~240Vac Load Only
- Works With 24v battery system only
- Dual priority operation selectable: AC vs. DC mode
- Support frequency 50hz or 60hz
- Adjustable AC input voltage 90~280VAC
- Supports 50hz or 60hz via LCD program
- USB comm port
- inversor
- pure sine wave power inverter
- micro inverter
- inverter hybrid
- inversor solar
- power inverter solar

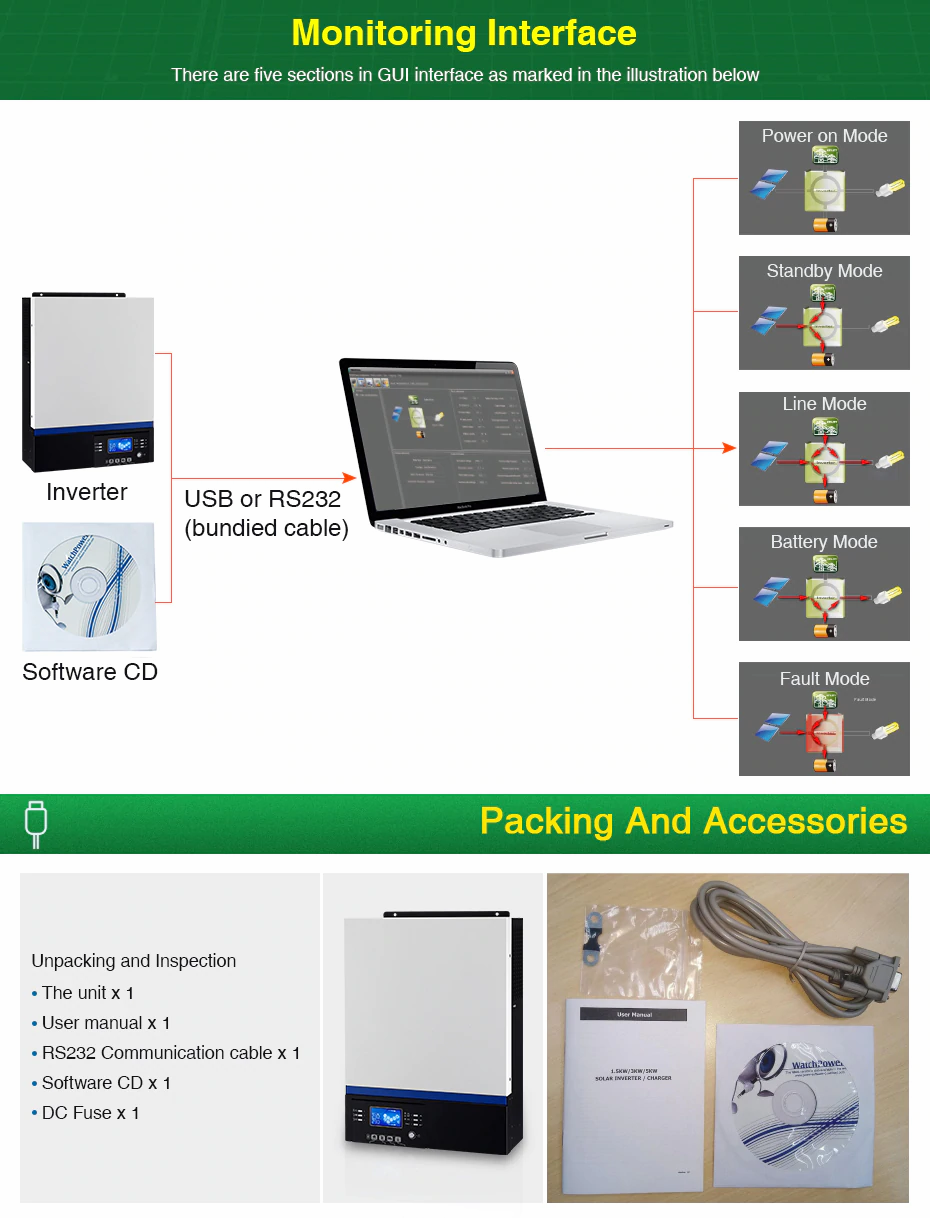

- Free monitoring software
- Programmable LCD with menu
- Built-in alarms and protections
- Intelligent battery charging control
- CE, EMC certified
- WARNING:
1. Because this inverter is non isolated, only three types of PV modules are acceptable: single
crystalline, poly crystalline with class A rated and CIGS modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter. For
example, grounded PV modules will cause current leakage to the inverter. When using CIGS modules, please
be sure NO grounding.
2.Before connecting to AC in put power source , please install a separate AC breaker between
inverter and AC input power source . This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input. The recommended spec of AC b reaker is 16A
for 1.5KW and 32A for 3KW and 5 0A for 5KW
There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis connect input
and output connectors
